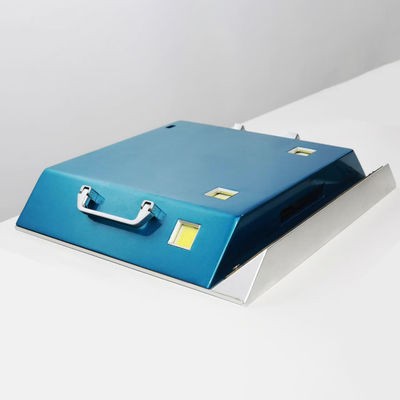

Wireless Portable Vehicle Underbody Scanning System For Security

Technical Parameter

The system adopts 5G wireless transmission color linear array camera scanning technology for dynamic imaging
Intelligent power management system, displaying real-time power status
Vehicle bottom scanner weight ＜ 20KG
The car bottom scanner adopts dual battery and dual voltage technology, which serves as backup for each other
The charging time of the car bottom scanner is less than 5 hours
The size of the vehicle bottom security inspection device is less than 450mm in length, 450mm in width, and 75mm in height
Chassis imaging display time: ≤ 2 seconds
Detection of vehicle chassis height: ≥ 80mm; Check the width of the vehicle chassis: ≤ 4500mm
Vehicle bottom image resolution: 19000 * 9000
The field of view angle of the vehicle bottom image acquisition component is greater than or equal to 180 °
Vehicle speed detection: It is recommended to be ≤ 20km/h, with a maximum adaptation of 80km/h
Vehicle bottom image display method: large horizontal color display
A system with license plate recognition function, supporting the association of license plate information with vehicle bottom images
The system supports quick retrieval of collected images of the vehicle's bottom, license plate, and exterior based on information such as date, time, and license plate number
A system with license plate recognition function, with a license plate resolution of ≥ 1000TVL

Operating Environment

Working environment temperature: -35 ℃~+70 ℃
Working environment humidity: 0-95% (without condensation)

Product Usage

The wireless portable car bottom scanning system has a high protection level design and can work normally in harsh environments. This product is suitable for inspecting car chassis in temporary security areas such as airports, public security inspection stations, docks, customs, prisons, military restricted areas, and large conferences.

Or used to explore the following items:

Explosives and bombs: including but not limited to components of explosives such as bombs, homemade explosive devices (IEDs), detonators, pyrotechnic devices, leads, batteries, etc.
Weapons and ammunition: including pistols, rifles, bullets, grenades, and other weapons and their accessories.
Illegal smuggled goods: drugs, precious wildlife products, illegal electronic products, tobacco products, etc. Illegal wireless devices: including illegal wireless transmitters, receivers, and other wireless communication equipment.
Illegal immigration: used to prevent unauthorized individuals from hiding under the chassis of vehicles.
Other prohibited items: such as controlled knives, sparks, flammable and explosive liquids, and solids.
