Security Check Portable X Ray Scanner System Portable X Ray Detector

Security Check Portable X Ray Scanner System Portable X Ray Detector

Packaging Details :
1 pc in a pp bag 2pcs in a carton
Payment Terms :
L/C, T/T, D/P, Paypal
Supply Ability :
100000cs/Month
Place of Origin :
China
Brand Name :
cxxm
Model Number :
CXXM01
MOQ :
100pcs
Delivery Time :
30days

Inquiry now

product introduction

Specifications

Type: Portable X-ray Detector

Model NO.: CXXM01

Alarm Form: Display Alarm

Remote Range: 70m

Color: Black

Trademark: CXXM

Transport Package: Carton

Specification: Costomized

Origin: China

Port: Xiamen, China

Portable: Portable

Form: Folding

Application: Security Check, Industrial

Certification: CE, ISO

Customized: Customized

Highlight: Professional x ray scanner, Security Check portable x ray detector, Military x ray scanner

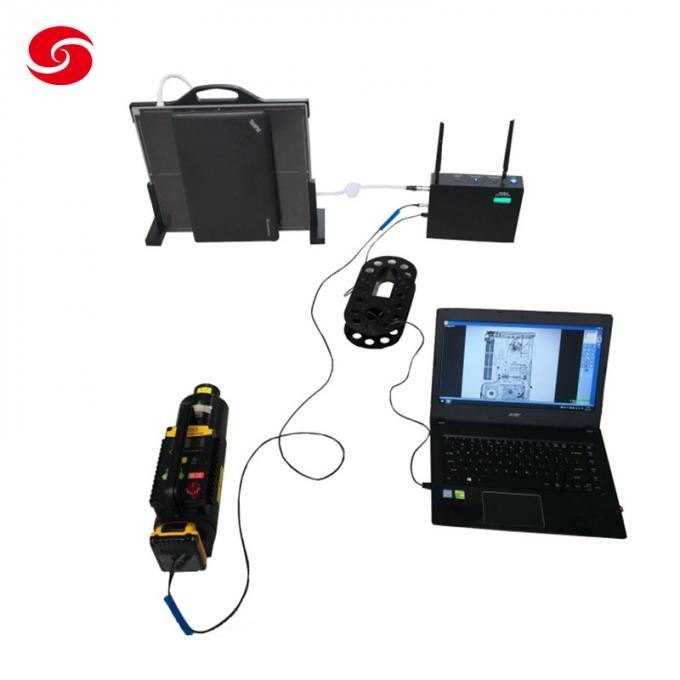

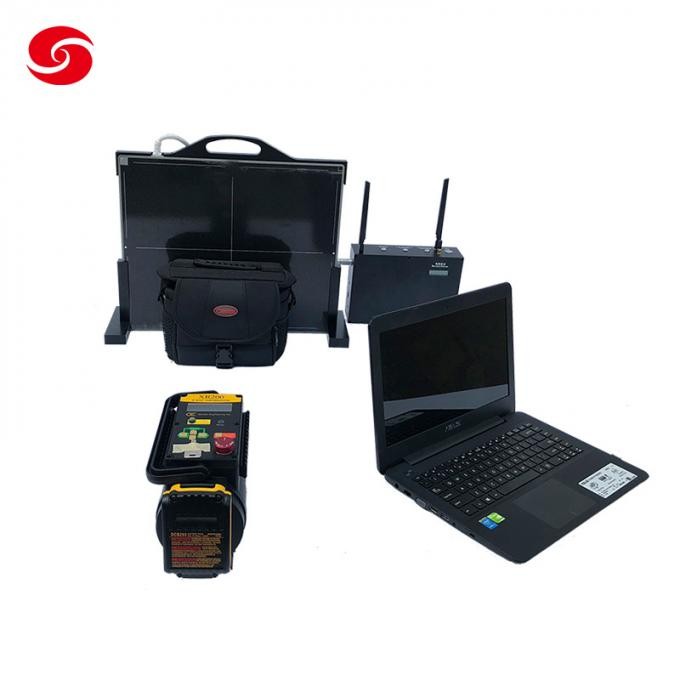

Security Check Portable X Ray Scanner System Portable X Ray Detector

Highlights:
1. It adopts cutting-edge technology "amorphous silicon with TFT" , so it can produce HD picture.
2. It can be operated with remote control in the rear to ensure operator safe. Remote distance is more than 70m.
3. Strong penetration ability which can penetrate 50mm aluminium plate.
4. User-friendly software with Powerful image enhancement and Analysis tools.

Application Field:
1. Disposal of IED by EOD team from Police Force.
2. Counter Surveillance: inspecting every objects - such as electronic devices, furniture, walls (concrete, drywall) and even inspecting an entire hotel room.
3. Border Control: It is perfect for contraband - drugs or weapons, and IED detection by examination of suspected items across borders and perimeters.
4. Customs: offer an excellent inspection solution for check points that do not have large cargo or vehicle inspection systems or require a complementary solution.

Technical Specification of the imaging plate:
Product Name	Portable X-ray Scanner System
Detector Type	Amorphous Silicon with TFT
Detector Area	433mm x 354mm (Standard)
Detector Thickness	15mm
Pixel pitch	154 μm
Pixel array	2816X2304 pixels
Pixel Depth	16 bits
Limiting Resolution	3.3 lp/mm
Image Acquisition Time	4-5s
Weight	6.4kg with battery
Power supply	220V AC/50Hz
Communication	Wired: 50 meters fiber on a roller, TCP/IP Ethernet ; Wireless: 5G Wi-Fi , no less than 70m
Operating Temperature	-10â„ƒ+55â„ƒ
