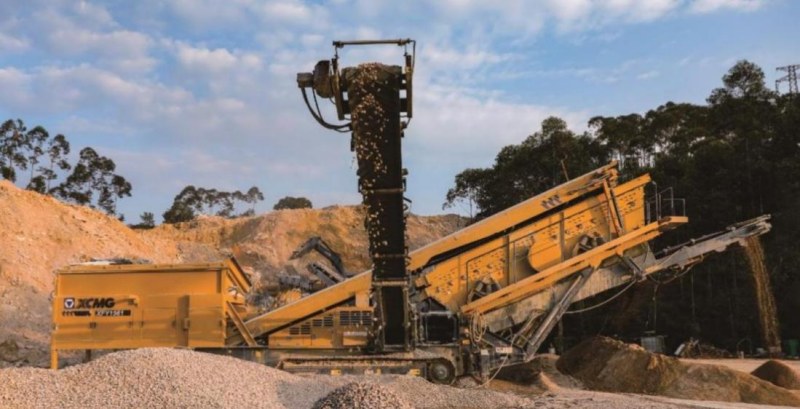

The XFY1561 Mobile Screening Plant is a high-performance Tracked Screening Plant engineered for aggregate production, quarry operations, mining, and recycling applications. Designed with a fully hydraulic drive system, large screening area, and intelligent automation, this Mobile Screening Machine delivers precise material separation, high throughput, and exceptional reliability across a wide range of operating conditions.
Capable of processing up to 500 t/h, the XFY1561 is ideal for screening sand, gravel, crushed stone, recycled concrete, asphalt millings, and construction waste. Its compact tracked design enables fast relocation, making it a versatile Portable Screening Plant for contractors and material producers.
Efficient material classification is essential for producing high-quality aggregates and maximizing plant productivity. The XFY1561 combines advanced screening technology with intelligent control systems to reduce downtime, improve screening accuracy, and simplify daily operation.
Key advantages include:
Up to 500 t/h processing capacity
Fully hydraulic drive system
Large multi-deck vibrating screen
Adjustable screening angle
Wireless remote control
Automatic lubrication
Foldable hopper and conveyors
Fast job site relocation
Low maintenance requirements
Whether operating as a standalone Mobile Screener or as part of a complete Screening and Crushing Plant, the XFY1561 delivers reliable performance in demanding environments.
| Parameter | Specification |
|---|---|
| Maximum Processing Capacity | 500 t/h |
| Maximum Feed Size | 150 mm |
| Maximum Gradeability | 11.5° |
| Drive System | Fully Hydraulic |
The fully hydraulic system ensures smooth power transmission, reliable operation, and simplified maintenance while maintaining consistent screening performance.
| Parameter | Specification |
|---|---|
| Hopper | Hydraulic Foldable |
| Conveyors | Hydraulic Foldable |
| Undercarriage | Heavy-Duty Crawler Tracks |
Hydraulically folding components reduce transport dimensions and enable rapid deployment between projects, improving operational efficiency and reducing logistics costs.
The XFY1561 utilizes a large-area Vibrating Screening Plant combined with an adjustable screen angle to maximize screening performance.
Benefits include:
Higher screening efficiency
Improved particle separation
Better material stratification
Greater adaptability to wet or sticky materials
Consistent product quality
By adjusting the screen angle, operators can optimize throughput or improve separation accuracy based on material characteristics.
Unlike conventional mechanical drives, the fully hydraulic powertrain provides:
Smooth startup and shutdown
Lower mechanical wear
Reduced maintenance
Reliable power transmission
Improved machine durability
This design improves uptime while lowering long-term operating costs.
The XFY1561 features a modern digital control platform that simplifies operation and improves fleet management.
Standard features include:
Wireless remote control
One-touch start and shutdown
Intelligent fault diagnosis
Real-time operating data
Production monitoring
Historical data recording
Optional cloud-based mobile monitoring enables operators to track machine performance from virtually anywhere.
Hydraulic folding technology significantly reduces transport size while minimizing setup time.
Advantages include:
Faster relocation
Reduced transportation costs
Quick commissioning
Easier site access
Increased machine utilization
The integrated automatic lubrication station continuously supplies grease to critical bearings and moving components.
Benefits include:
Extended bearing life
Reduced maintenance time
Lower operating costs
Improved equipment reliability
The XFY1561 can be configured to meet different production requirements.
Available screen media include:
Square-hole screen mesh
Rectangular-hole screen mesh
Piano wire screens
Heavy-duty woven mesh
Custom screen configurations
Different mesh types optimize screening efficiency for sand, gravel, crushed stone, recycled concrete, and other aggregates.
| Category | Available Options |
|---|---|
| Screen Media | Top, Middle & Bottom Deck Mesh |
| Screen Cleaning | Screen Surface Impact Beater |
| Cold Climate | Engine Cold Start Package |
| Monitoring | Mobile App, Video Monitoring System |
| Undercarriage | Ground Protection Track Shoes |
These options allow the machine to be tailored for quarrying, mining, recycling, and aggregate production.
To maximize productivity and service life, the XFY1561 offers a complete range of wear-resistant components.
Available in multiple configurations:
Square-hole mesh
Rectangular-hole mesh
Piano wire screens
Custom wire diameters
Heavy-duty wear-resistant materials
Choose from:
Flat belts
Chevron belts
Heavy-duty rubber covers
High-strength tensile belts
Wear-resistant belt compounds
Available roller configurations include:
Standard carrying rollers
Impact rollers
Self-aligning rollers
Comb cleaning rollers
These components improve conveyor efficiency while reducing maintenance requirements.
As a professional Aggregate Screening Plant, the XFY1561 efficiently classifies crushed stone, gravel, sand, and other aggregates used in road construction, commercial buildings, and infrastructure projects.
The XFY1561 serves as a reliable Quarry Screening Plant, providing high-capacity material classification for limestone, granite, basalt, and other quarry materials.
Designed as a durable Mining Screening Plant, the machine processes ores and mineral aggregates while maintaining stable production in demanding operating environments.
The XFY1561 functions as an efficient Sand Screening Machine and Gravel Screening Plant, producing accurately graded materials for concrete production, asphalt mixing, and civil engineering.
As a Construction Waste Screening Plant, the XFY1561 separates recycled concrete, demolition waste, asphalt millings, and reclaimed materials into reusable products, supporting sustainable construction practices.
The plant is also an excellent Recycling Screening Plant, improving recovery rates and product quality in recycling facilities handling construction and demolition materials.
Our global service network provides comprehensive support throughout the equipment lifecycle to maximize machine availability and production efficiency.
Our service commitment includes:
15-Minute Response – Immediate technical support acknowledgment
2-Hour Support – Fast remote or on-site assistance
24-Hour Resolution Target – Efficient troubleshooting to minimize downtime
Support services include:
Equipment installation
Operator training
Spare parts supply
Preventive maintenance
Technical consulting
Remote diagnostics
Lifecycle support
| Advantage | Customer Benefit |
|---|---|
| High Capacity | Up to 500 t/h for demanding aggregate production |
| Excellent Screening Accuracy | Large screen area with adjustable screening angle |
| Fully Hydraulic | Reliable performance with reduced maintenance |
| Intelligent Automation | Remote control, fault diagnosis, and production monitoring |
| Fast Relocation | Foldable hopper and conveyors simplify transport |
| Low Operating Cost | Automatic lubrication and efficient hydraulic drive |
| Flexible Configuration | Wide selection of screen media and optional equipment |
| Global Support | Comprehensive technical service and worldwide after-sales support |
The XFY1561 is suitable for sand, gravel, crushed stone, limestone, granite, recycled concrete, asphalt millings, demolition waste, and other materials with a maximum feed size of 150 mm.
Changing the screening angle allows operators to balance throughput and screening precision. A steeper angle increases production capacity, while a flatter angle improves material separation for higher-quality finished products.
The hydraulic drive delivers smooth operation, reduces mechanical wear, lowers maintenance requirements, and improves overall machine reliability compared with conventional mechanical drive systems.
With hydraulically foldable hoppers and conveyors, the XFY1561 can typically be transported, unfolded, and ready for production in less than one hour, depending on site conditions.
Yes. We offer square-hole, rectangular-hole, piano wire, and other custom screen mesh options in various materials and wire diameters to match different feed materials and production requirements.
