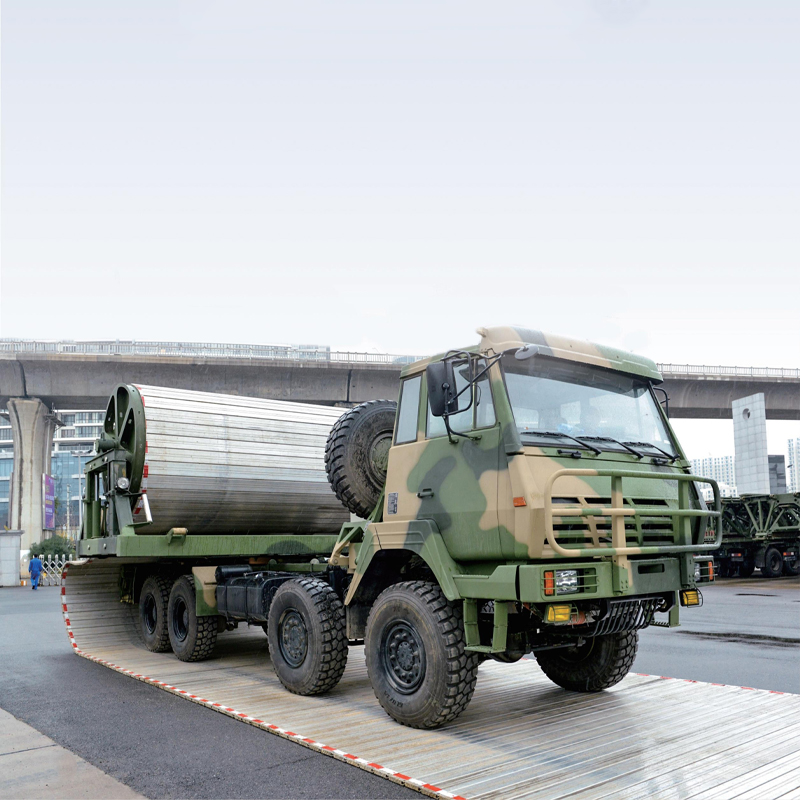

HZLM100 Fast Hard Road Paver

Core Advantages: Redefining Temporary Road Efficiency

1. 10-Minute Paving & Retrieval: No Time to Waste

In high-stakes situations—like a flood cutting off a  village or a military unit needing to cross a marsh—every minute counts. The HZLM100 completes full paving (100m roadway) in just 10 minutes and retrieves the entire surface in the same timeframe. This is a radical improvement over traditional solutions: concrete paving takes hours to set, while gravel paths require heavy equipment and manual labor. For example, in a post-flood rescue, the HZLM100 can lay a 100m path for ambulances before a conventional team even unloads their gear.

4.2m Wide Roadway: Covering Large Gaps 2. 1

This paver doesn’t just create paths—it covers distance. Its 100m total roadway length spans wide low-bearing zones (e.g., a marshy stretch between two roads, a long beach landing area) in one deployment, eliminating the need to piece together smaller sections. The 4.2m width accommodates single-way heavy vehicles (like 60t excavators) or two-way light traffic (utility trucks, military jeeps), making it flexible for mixed-vehicle operations.

3. 60t Load Capacity: Supporting Heavy Assets

Despite its fast deployment, the HZLM100 doesn’t compromise on strength. It handles a 60t tracked load and 15t axle load, safely supporting heavy machinery (disaster-relief cranes, military armored vehicles) and industrial equipment (construction bulldozers, oilfield trucks). This load capacity matches the needs of emergency and military teams, who can’t afford to leave critical gear behind due to weak temporary roads.

4. Versatile Terrain Adaptation: From Beach to Marsh

The HZLM100 is built to tackle four of the most challenging low-bearing terrains:

Beaches: Its hard surface prevents vehicles from sinking into sand, even under heavy loads.

Muddy Fields: The non-slip roadway avoids tire bogging, keeping convoys moving in rain-soaked areas.

Snow: The rigid surface resists compression, maintaining a stable path for winter rescue or military operations.

Marshes: It distributes weight to avoid sinking into soft, waterlogged ground—critical for accessing remote wetland disaster zones.

5. 3-Person Operation: Lean, Efficient Teams

Operating the HZLM100 requires just 3 personnel—a driver, a paving system operator, and a safety monitor. This lean crew size is ideal for emergency teams (where staff are stretched thin) and military units (where minimizing exposure to risk is key). The intuitive controls and automated paving process also reduce training time, so teams can master the system quickly.

Technical Specifications: Built for Speed & Durability

Product Type: HZLM100 Fast Hard Road Paver (Mobile Temporary Roadway System)

Curb Weight: 30t (optimized for on-road mobility and off-road terrain navigation)

Dimensions (L×W×H): 10.3m × 2.5m × 3.45m (compact enough to travel on standard roads, even in urban areas)

Roadway Performance:

Roadway Width: 4.2m (supports mixed vehicle sizes)

Roadway Length: 100m (one-deployment coverage for large low-bearing zones)

Load Capacity:

Tracked Load: 60t (for heavy machinery and armored vehicles)

Axle Load: 15t (compatible with standard industrial/military vehicle axles)

Operation Times:

Paving Time: 10 minutes (from vehicle stop to usable roadway)

Retrieval Time: 10 minutes (from roadway disassembly to mobile state)

Personnel Requirement: 3 Operators

Key Features: Automated paving mechanism, non-slip hard roadway surface, terrain-adaptable chassis, on-board storage for spare parts

Application Scenarios: Where the HZLM100 Makes a Difference

1. Post-Disaster Emergency Access

After floods, hurricanes, or earthquakes, roads often turn into impassable mud or are washed out entirely. The HZLM100 deploys quickly to lay 100m paths for rescue vehicles: ambulances to reach stranded victims, fire trucks to access burning buildings, and supply trucks to deliver food and water. In a 2024 hypothetical coastal flood, for example, it could connect a cut-off town to a main highway via a marshy area, enabling 24/7 relief operations.

2. Military Maneuvers & Deployments

Military units often need to cross low-bearing terrain (beaches, marshlands) without being slowed by terrain barriers. The HZLM100 acts as a "quick bridge" for convoys: it lays a 100m roadway in 10 minutes for tanks and armored vehicles to advance, then retrieves quickly to avoid being targeted by enemy forces. Its 3-person crew also reduces the number of soldiers needed to secure the path.

3. Remote Construction & Resource Operations

Building infrastructure (roads, pipelines) or accessing resources (oil, minerals) in remote areas often requires heavy equipment to cross difficult terrain. The HZLM100 travels with construction teams, laying temporary roads for bulldozers, cranes, and supply trucks in muddy or snowy regions. Its 30t curb weight lets it navigate rough access roads to reach these remote sites, while its 100m roadway covers long stretches between work zones.

4. Winter & Arctic Operations

Snow and ice turn even minor gaps into major barriers. The HZLM100’s hard roadway resists snow compression and ice buildup, ensuring consistent access for winter rescue teams, ski resort maintenance, or Arctic military outposts. Its fast retrieval also lets teams relocate the path as snowdrifts shift, avoiding the need to rebuild fixed paths repeatedly.

Support & Service: Ensuring Reliability in Any Terrain

Terrain-Specific Customization: We offer upgrades to enhance performance in extreme conditions—such as anti-corrosion coatings for coastal beach use, anti-icing heating elements for Arctic snow, or mud-repellent surface treatments for tropical marshlands. These modifications ensure the HZLM100 works seamlessly in your operational environment.

3-Person Crew Training: Our on-site training focuses on real-world scenarios: fast paving under time pressure, load safety checks for 60t equipment, troubleshooting automated systems, and navigating the paver’s chassis on rough terrain. We also include modules for emergency retrieval (e.g., sudden weather changes).

Portable Spare Parts Kits: We supply compact, durable spare parts kits—including paving mechanism gears, roadway surface patches, and hydraulic hoses—that fit in the HZLM100’s on-board storage. This lets teams make repairs in remote areas without waiting for logistics support.

Compliance Documentation: We provide full certification to meet military, emergency management, and industrial standards, including 60t load test reports, terrain performance data (beach/mud/snow/marsh), and safety validation for 3-person operation—critical for procurement and operational planning.
