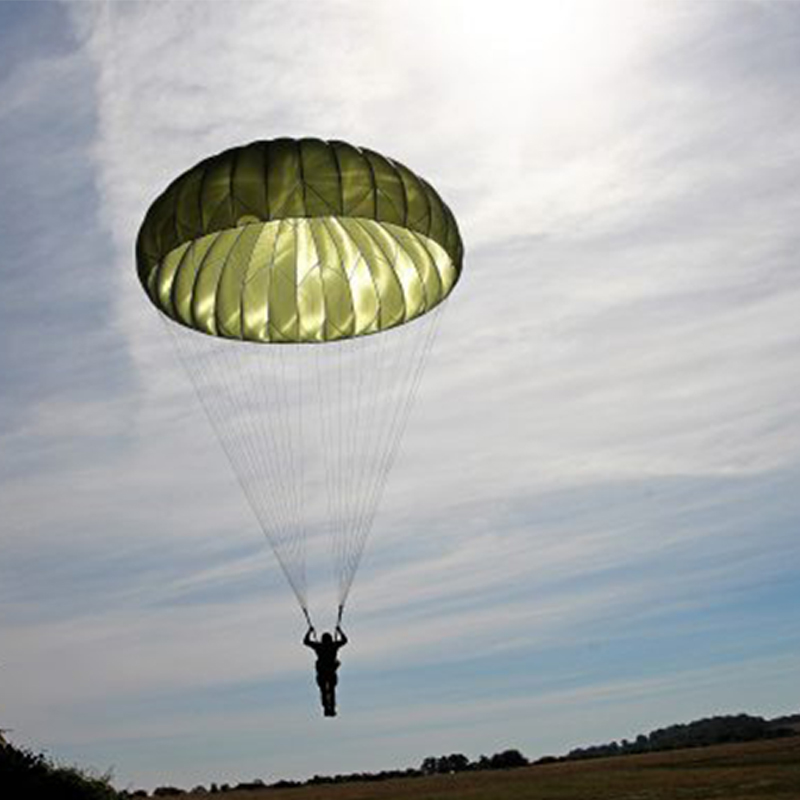

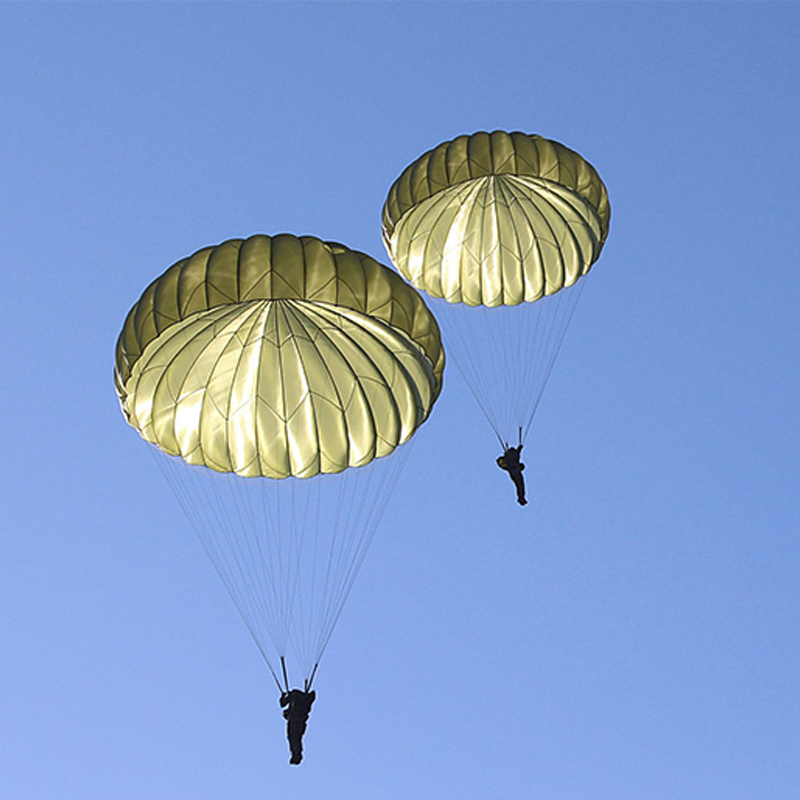

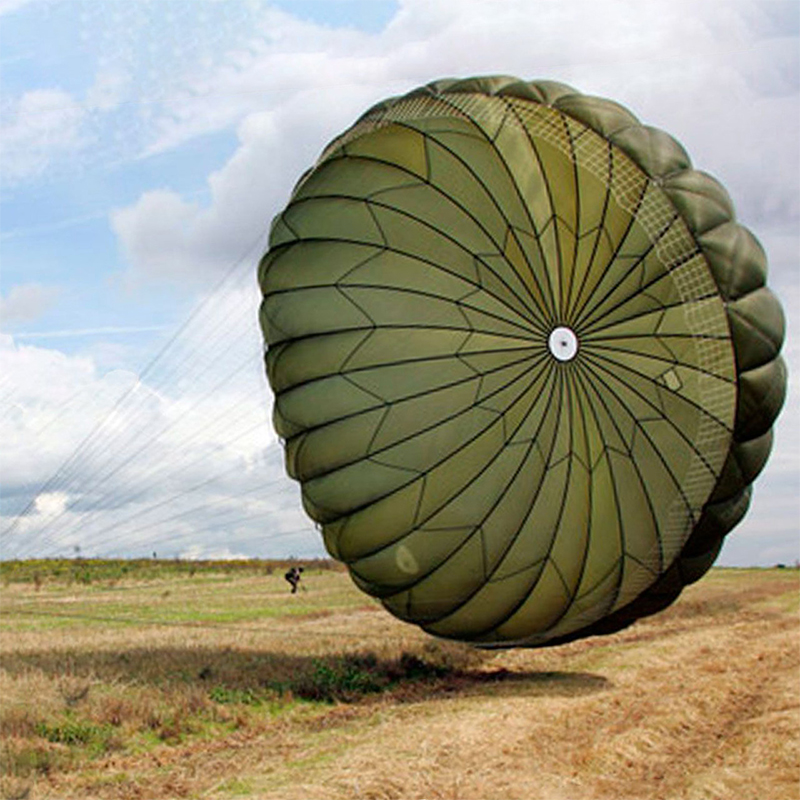

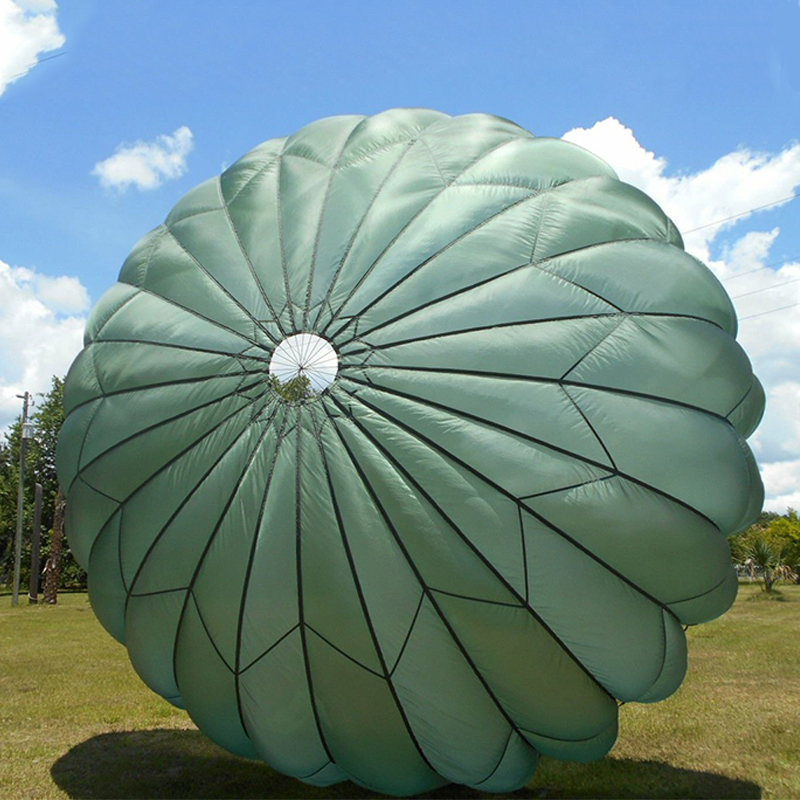

The T-10 paratrooper parachute

Key Characteristics

· Shape: Parabolic

· Diameter: 10.7 meters

· Inflated Diameter: 25.7 feet (7.8 meters)

· Canopy Material: 1.1-ounce tear-resistant nylon parachute fabric

· Vent Line Material: Type II nylon rope (tensile strength: 400 pounds)

· Suspension Lines: 30 in total; Type II nylon rope (tensile strength: 400 pounds); length: 25 feet

· Maximum Weight Capacity: 360 pounds

· Complete Assembly Weight: 31 pounds

· Maneuverability: No

· Maximum Jump Wind Speed: 15 mph

· Descent Rate: Average 22 ft/s

· Minimum Deployment Altitude: 500 feet (152 meters)

· Maximum Deployment Speed: 173 mph (150 knots)

· Service Life: 16.5 years

· Operational Life: 12 years

Model Variations

T-10B

· NSN: 1670-00-591-0720

· P/N: 11-1-564-1

· Components:

· Canopy: 11-1-1501

· Pack: 62J4342D-

· Bag: 56D6276

· Static Line: 55D6481

· Harness: 11-1-2143-1

· Riser: 11-1-2149-2

T-10C

· NSN: 1670-01-248-9502

· P/N: 11-1-564-2

· Components:

· Canopy: 11-1-1501-2

· Pack: 62J4342

· D-Bag: 56D6276

· Static Line: 55D6481

· Harness: 11-1-2143-1

· Riser: 11-1-2149-2

T-10D

· NSN: 1670-01-484-2234

· P/N: 11-1-564-4

· Components:

· Canopy: 11-1-1501-2

· Pack: 62J4342

· D-Bag: 11-1-6994-1

· Harness: 11-1-2143-1

· Riser: 11-1-2149-2

· Static Line:

· U/N 15′: 11-1-6993-1

· U/N 5′ EXT.: 11-1-6993-2

· With Snap: 11-1-691-1

Key Upgrades & Improvements

· 1976 (T-10B): Added an anti-inversion skirt net (old part NSN11-1-1501) to enhance reliability; many active-duty canopies were retrofitted with this net.

· 1986 (T-10C): Upgraded from T-10B with:

· Extended bag strap free length (4 inches → 7.5 inches) and reduced bag depth (5 inches → 4.25 inches), lowering opening shock, reducing descent rate, and enabling "softer" landings.

· All active-duty T-10B canopies were upgraded to the new bag strap length.

· 2006 (T-10C):

· Material color updated to U.S. Army Foliage Green #504.

· Pack assembly (P/N 62J4342) revised with static line storage bars for 15-foot 5-inch yellow static line.

· Static line secured via breakaway strap (or directly to main strap if omitted).

· 2000 (T-10D): Introduced detachable deployment bag with:

· Universal static line (15-foot or 20-foot with 5-foot extension) for deployment from various aircraft.

· Adjustable chest, back, and leg straps (30 inches long) with permanently attached male canopy release fitting.
