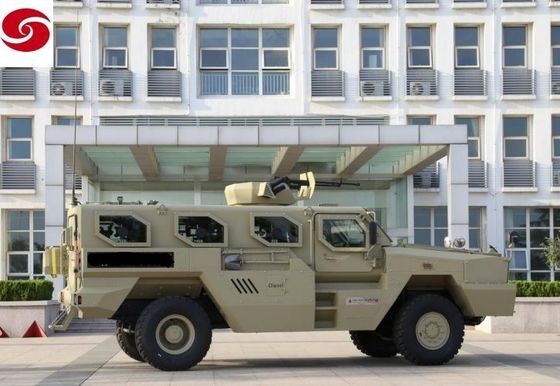

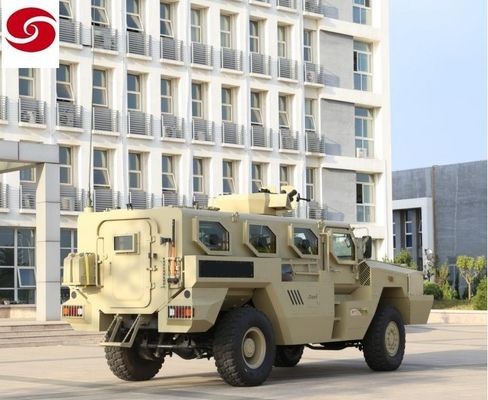

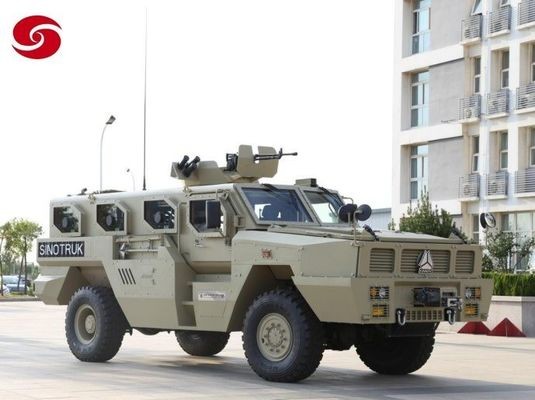

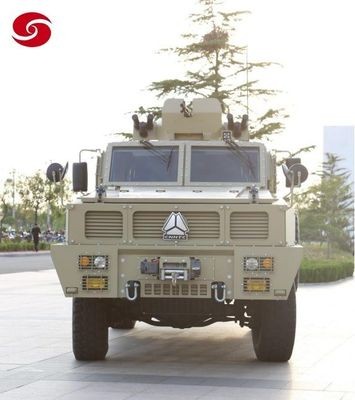

/ Home /Ballistic Equipment / Explosion Proof Military Police Vehicle Bulletproof Armored Car Military APC 6x6
Packaging Details :
1 pc in a cartonPayment Terms :
T/TSupply Ability :
50sets/MonthPlace of Origin :
ChinaBrand Name :
cxxmModel Number :
LX210204002MOQ :
1 pcDelivery Time :
50daysMax. Cruising Speed: 95 km/h (highway) , 105 km/h(highway,instantaneous)
Approach/ Departure Angle: 25°/23°
Grade ability: 60%
Driving Side Slope: 30%
Max. Cruising Range: 700 km(highway)
Min. Turning Diameter: ≤18m
Ground Clearance: 400 mm(lowest point of the axle)
Fording Depth ( without preparation): 1100 mm
Vertical Obstacle: 350 mm
Working Temperature:-20°-+55°
Fire Extinguishing System: Automatic fire extinguishing system in engine room; Portable fire extinguisher × 2
Level Of Protection:
Front: 100m distance resistant 12.7mm bullet
Side/back: 100m distance resistant 7.62mm bullet
All sides: CEN1063 B6, B7
Anti mine protection: 8KG TNT
Protection can be increased up to STANAG 4569 3b by attached Amour Panel.
Standard Specification:
|
No. |
Parts |
Description |
Quantity |
Remark |
|
1 |
Chassis |
Sinotruk Military Chassis
Left or Right hand drive
Overall dimension: About 7755 mm × 2660 mm × 2627 mm
Seats: 1+1+10 1 driver, 1 commander, 10 soldiers |
1 set |
Total Combat Weight:15000kg Kerb weight: 13800kg Effective Load: 12000kg Chassis.:Military Chassis 4x4 Engine Model: Diesel; Mann MC07.31, 6-cylinder, water-cooled engine; Turbocharged mid-cooler, 320hp/2300rpm; 1230N.m/1200 to 2300rpm or equality.
Transmission: FAST manual shifting 9 forwards&1 reverse or equality (optional automatic version)
Transfer Case:ZQC1200 or equality ; Full time four wheel drive; lockable central differential; high 1.00, low 1.75
|
FAQ
Q1:Can we get the sample for reference?
A1:We are glad to send samples for your inspection if we have the same or similar samples in hand. To new customer, you may need to pay the sample(depends on product's value) and the express fees.When you place the order to us , we will refund you .
And if you want us to make the same sample as you required , which you may need to send us the original sample and the sampling charge, when you place a order of bulk production , we will refund this charge to you.
Q2:How long will be my goods ready for shipment ?
A2:Different specification products with different quantity ordered, the time of delivery is different, .As usual, it will take 15-25 work days.
Q3:Do need to apply Permit to export Military, police and tactical items from China?
A3:Yes. There is strict law and regulation by Chinese government for the exporting of Military , police and tactical items. Only China Xinxing could issue the permit for the legal shipment.
Q4: What is your terms of payment?
A4:T/T or L/C at sight.
Q5: How to solve the quality problems after sales?
A5:(1) Take photos of the problems and send to us.
(2) Take videos of the problems and send to us.
(3) Send back the defective products to us if neccessory.
After we comfirm the problems, will give you the answer within 7 days.
Q6: Can we make our logo on the products?
A6: Yes. We can do logo as your requirement as well as your design project.And we also accept custom service.
