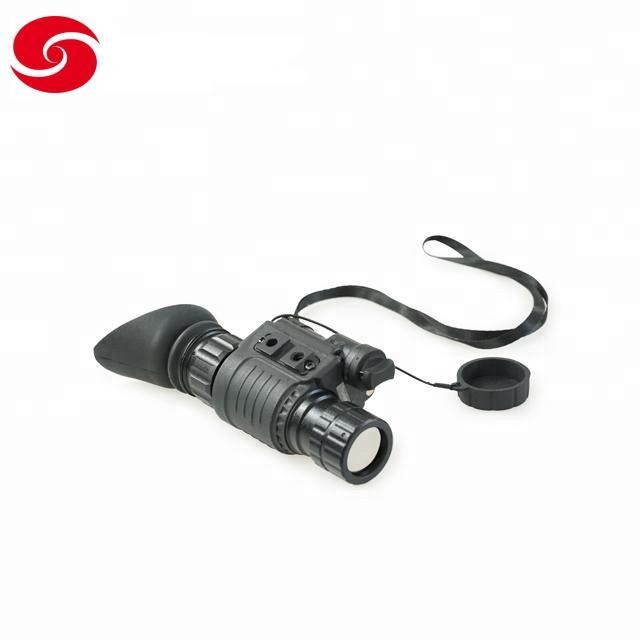

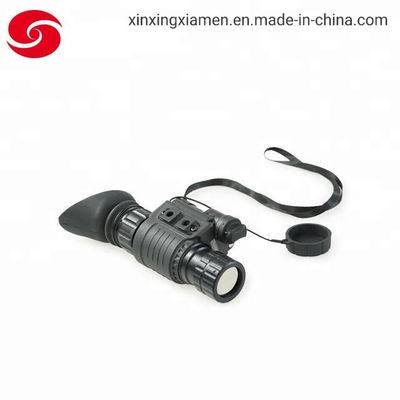

MHB Night Vision Monocular Goggles Series
Description:
Image Intensifier Tube - Generation2+ or Europe Generation3 , power supply with built-in bright flash protection (with automatic brightness gain regulation).
MHB is portable and multifunctional night vision monocular with high resolution,small in size,light in weight .Magnification can be changed by replacing different objective lens, 1x , 3x 5x and 7x are available.It also can be mounted on the rifle compatible with red dot sights as night scope for fast aiming.
It can be equipped with digital camera, video recorder,CCD video camera and use Russian super Gen 2+ or gen3 sophisticated Image Intensifier Tube with Anti-glare,function and built-in IR Illuminator,and it can be widely used for military observation,sea defence,frontier reconnaissance,surveillance, suppress smuggling,drugs and traffickers seizure,security check ect,and also can be used in other low light condition.
Application
+ Police / Law enforcement / Military
+ Night surveillance / sea defence
+ Patrol / Rescue / Search
Features
+Small in size, compact rugged Goggle system

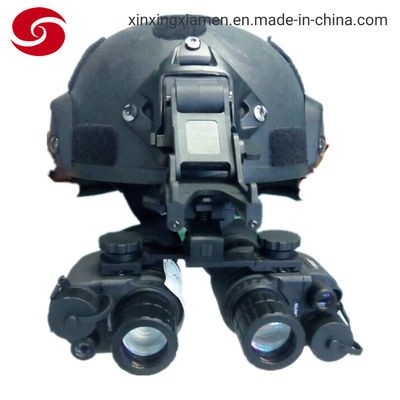

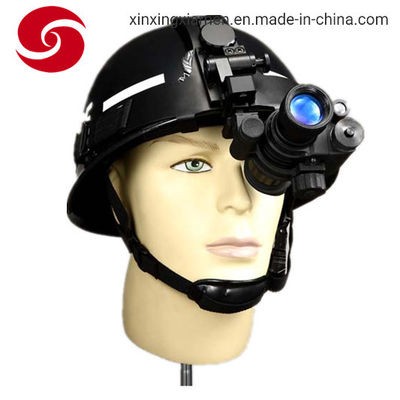

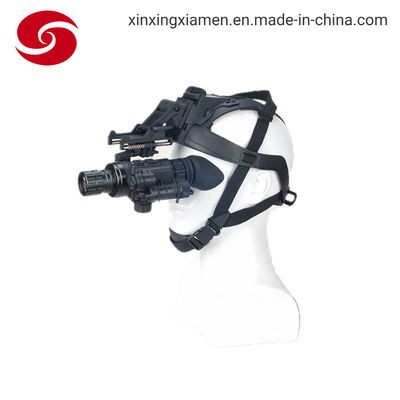

+Multi-purpose: Hand-held, head-mounted or helmet mounted
+Comfortable, flip-up headgear,reliable and
+Multi-coated all-glass optics,superior resolution
+Wide angle infrared illuminator,long range viewing
+Optional 3x, 5x and 7x lenses available
+Waterproof Weather and fog resistant
+Limited one-Year Warranty
Performance attributes| IIT | 2+/Euro Gen3 |
| Magnification | 1 |
| Angular field of view, degree | 40±2 |
| Focus range, m | 0,25÷∞ |
| Diopter Adjustment | ±5 |
| Resolution, lp/mm min- max | 48-58 / 57-64 |
| Auto-off under 40 Lux | yes |
| Auto-on under 10 Lux | yes |
| Auto-off when mount be Flip-flop | yes |
| Auto-on when mount be flip-down | yes |
| Supply voltage, V (1 Lithium CR123 batteries or AA) | 1.2-3 |
| Active performance period without IR illumination, min, hours | 40 |
| Active performance period with IR illumination, min, hours | 20 |
| Output pupil diameter, mm | 20 |
| Output pupil relief, mm | 25 |
| Monocular weight, g | 300 |
| Mask weight, no more, g | 180 |
| Bag weight, g | 250 |
| Operating resource, hours | 10000 |
- Operating Temperature Range, °С ±50
- Relative Humidity at °С 98%
- Shock resistance 5g
- Water, weather and dust resistance IP65
Dimensions: 122x42x62 mm
- Operating mode switch and batteries compartment cover are easy to use even when operating in gloves.
- Angle of IR illumination totally assures a field of view (controlled under assembling).
- Monocular are performed as corrosion-proof.
- Low battery indicator.
- «IR-on» indicator.
- Brightness source protection
- Auto shut off systems
- Possible mounting on a right/left side.
Standard set- Night Vision Monocular Goggles
- Mask
Allows hands-free operation. High safety of mounting blocks and adjusting mechanisms.
- Carrying Case or hard case ( optional)
- Wrist strap
- Lens cleaning
- Manual

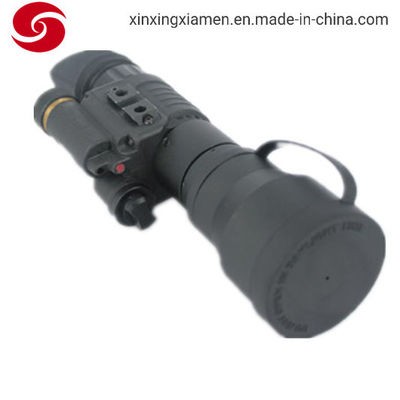

Accessories (Optional)- 3-х and 5-x magnifier lens
Easy and handful lens changing process at conducting viewing operations/ in field conditions.
Easily mounts to the objective lens. Provides 3x magnification
