This cost-effective stand-alone ballistic plate meets NIJ 0101.06 Level III standards independently—no Level IIIA vest required—reliably stopping 7.62×51mm M80 NATO, 7.62×39mm AK47 MSC, and 5.56×45mm M193 at 15 meters. Its dual-layer design (alumina ceramic for bullet fragmentation, UHMWPE for energy absorption) balances performance and affordability: alumina ceramic (HV0.5 ≥ 1800) delivers rifle-stopping power at 60% the cost of silicon carbide (SiC), ideal for high-volume equipping. Featuring a double curve contour (chest + rib arcs) that fits diverse torso types and reduces pressure points by 50% during 8+ hour wear, it weighs 2.65kg (25% lighter than steel Level III plates) for all-day mobility. The outer 600D black Oxford fabric is waterproof and flame-retardant, backed by a 5-year warranty—suitable for law enforcement patrols, private security firms, tactical training academies, and military reserve forces.
1. NIJ 0101.06 Level III Stand-Alone Protection (Proven Reliability)
Independently meets NIJ 0101.06 Level III standards—no Level IIIA vest required. At 15 meters, it consistently stops 7.62×51mm M80 NATO (NATO full-power ammo), 7.62×39mm AK47 MSC (AK47 standard ammo), and 5.56×45mm M193 (M16/AR-15 common ammo). The "Alumina Ceramic + UHMWPE" dual-layer design delivers reliable penetration resistance while controlling costs—ideal for agencies or teams needing high-volume, high-performance 防护 without premium material pricing.
2. Alumina Ceramic: Durable & Cost-Effective Hard Defense
Uses high-density alumina ceramic (hardness HV0.5 ≥ 1800) as the front-line barrier—more cost-efficient than silicon carbide (SiC) while maintaining critical rifle-stopping power. Alumina’s stable crystalline structure resists chipping from minor impacts (e.g., gear bumps) better than brittle SiC, extending service life for frequent tactical use (e.g., patrols, training).
3. Double Curve Design for Universal Torso Fit
Features a double curve contour (chest arc + rib arc) that conforms to the natural shape of diverse torso types—from slim to muscular builds. Unlike single-curve plates, it eliminates "gap pressure" (e.g., under the arms, across the sternum) and reduces pressure points by 50% during 8+ hour wear, making it suitable for all-day missions like urban policing or event security.
4. 2.65kg Balanced Weight + 5-Year Warranty
Weighing 2.65±0.05kg per plate—strikes a practical balance between protection and mobility for alumina-based designs. Lighter than steel Level III plates (≈3.5kg) and more affordable than SiC alternatives, it avoids overburdening wearers while delivering long-term value. The outer 600D black Oxford fabric is waterproof (no seepage in heavy rain) and flame-retardant, backed by a 5-year warranty for reliable tactical use.
|
Category |
Specification |
Description |
|
Model Info |
Model Number: DA-3E/T250300SA |
Stand-alone Level III ballistic plate; alumina-based for cost-effective rifle protection |
|
Basic Specs |
Size: 250×300mm±2mm |
Standard torso coverage; fits 95% of tactical plate carriers (MOLLE, slick, low-profile) |
|
|
Thickness: 26±2mm |
Optimized for alumina + UHMWPE layers—slim enough to fit under tactical jackets |
|
|
Weight: 2.65±0.05kg |
Per plate; front+back setup totals ~5.3kg (25% lighter than steel Level III plates) |
|
Protection Core |
Material: Alumina Ceramic + UHMWPE |
Alumina = shatters rifle bullet cores; UHMWPE = absorbs residual energy (cost-efficient dual-layer design) |
|
|
Ceramic Coverage: 225×275mm |
Vitals-focused hard protection (heart/lung area); avoids unnecessary weight with targeted coverage |
|
|
Protection Level: NIJ 0101.06 Level III Stand Alone |
Independent defense—no additional soft armor required |
|
Structural Details |

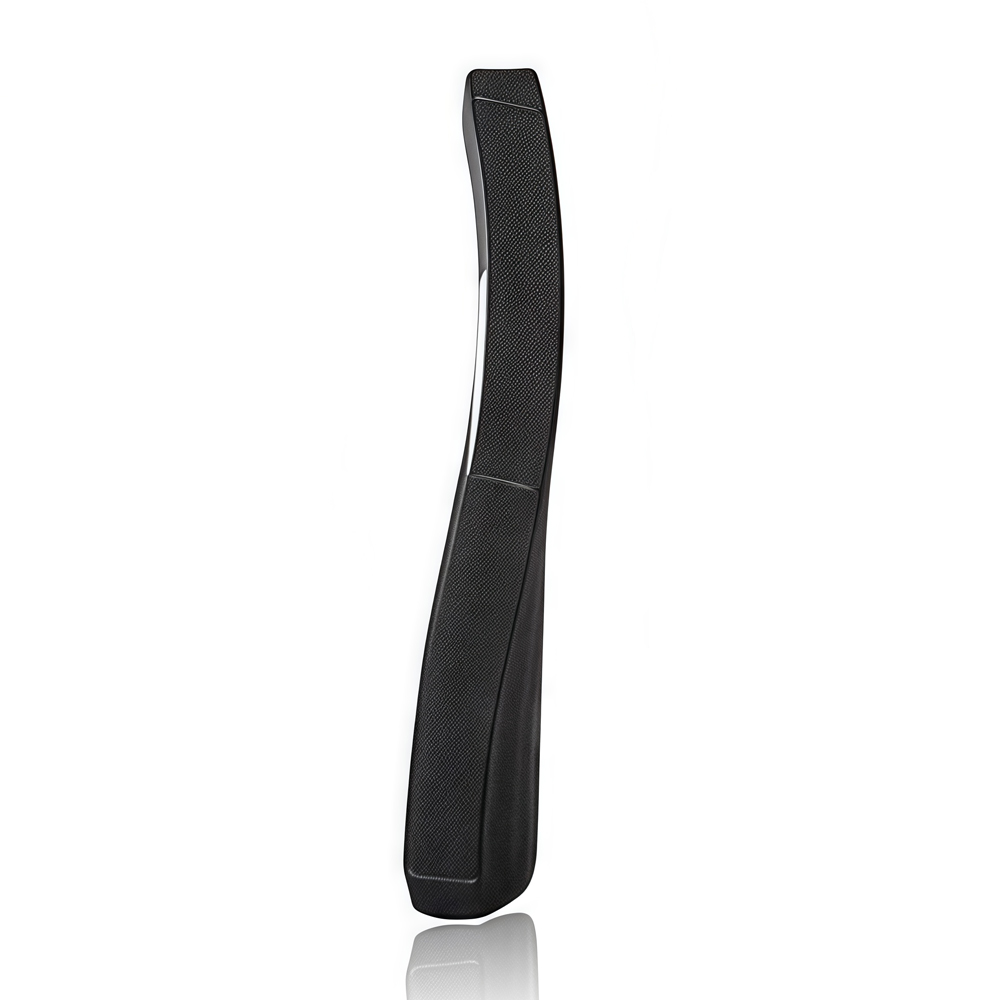

Curvature: Double Curve |
Dual-arc design (chest + ribs) fits diverse body types; enhances comfort during kneeling, crawling, or vehicle use |
|
|
Outer Covering: 600D Black Oxford Fabric (Waterproof + Flame-Retardant) |
Matte black low-visibility finish; scratch-resistant (handles gear friction) and moisture-proof |
|
Test Performance |
Shooting Distance: 15M |
Complies with NIJ 0101.06 Level III stand-alone test protocols for rifle ammo |
|
Bullets Stopped |
7.62×51mm M80 NATO; 7.62×39mm AK47 MSC; 5.56×45mm M193 |
Defends against global mainstream rifle threats (NATO, AK, M16 platforms) |
|
Warranty |
Warranty Period: 5 Years |
Valid for normal tactical use (excludes damage from misuse: dropping >1.5m, crushing, chemical exposure) |
1. Step 1: Alumina Ceramic Shatters Incoming Rifle Bullets
The high-density alumina ceramic layer acts as the first line of defense. When a rifle round (e.g., 7.62×51mm M80 NATO) hits, its hardness (HV0.5 ≥ 1800) instantly fractures the bullet’s core and jacket, transforming high-velocity projectiles into harmless debris. Unlike softer materials, alumina maintains structural integrity after initial impact, allowing it to withstand multiple hits (consistent with NIJ Level III standards).
2. Step 2: UHMWPE Absorbs Residual Kinetic Energy
Behind the ceramic, gel-spun UHMWPE fibers (15x stronger than steel by weight) catch fragmented bullet debris and absorb remaining kinetic energy. This layer prevents "backspall" (debris bouncing back toward the wearer) and limits backface deformation to <44mm (NIJ 0101.06’s maximum safe limit), reducing blunt trauma risk.
3. Cost-Effective Advantage of Alumina
Alumina ceramic delivers 90% of the rifle-stopping power of silicon carbide (SiC) at 60% of the cost—making this plate ideal for agencies, security firms, or training units that need to equip large teams without compromising on Level III protection. Its durability also reduces replacement frequency, lowering long-term operational costs.
|
User/Scenario |
Core Value |
Usage Suggestions |
|
Law Enforcement Patrol Units |
Cost-effective = high-volume equipping; double curve = all-day comfort |
Pair with standard MOLLE plate carriers for routine urban/highway patrols (e.g., city police, state troopers) |
|
Private Security Firms |
Durable alumina = low replacement costs; Level III = rifle defense |
Use in low-profile carriers for event security (e.g., concerts, political rallies) or facility protection |
|
Tactical Training Academies |
Affordable = repeated use; alumina durability = resists minor impacts |
Integrate into training drills for rifle protection practice (avoids wasting premium SiC plates on exercises) |
|
Military Reserve Forces |
Double curve = fits diverse soldiers; balanced weight = mobility |
Wear in combat plate carriers for reserve missions (e.g., border security, disaster response) |
1. Alumina Care: Avoid dropping the plate from >1.5m—alumina ceramic can develop hidden cracks (even if unnoticeable) that reduce protection. If dropped, tap the plate gently; a "dull thud" (vs. a clear ring) indicates internal damage—discontinue use.
2. Double Curve Storage: Do not stack heavy objects (e.g., gear bags, other plates) on top of it—this may warp the double curve, reducing torso fit and increasing pressure points. Store flat in a dry, cool area (relative humidity ≤ 75%).
3. Fabric Maintenance: Clean the outer 600D Oxford fabric with mild soap and water only—avoid harsh detergents or bleach (they break down the waterproof/flame-retardant coating).
4. Warranty Compliance: Do not cut, drill, or modify the plate—this breaks the alumina ceramic’s integrity and voids the 5-year warranty. Avoid contact with strong acids/solvents (they degrade UHMWPE and outer fabric).
