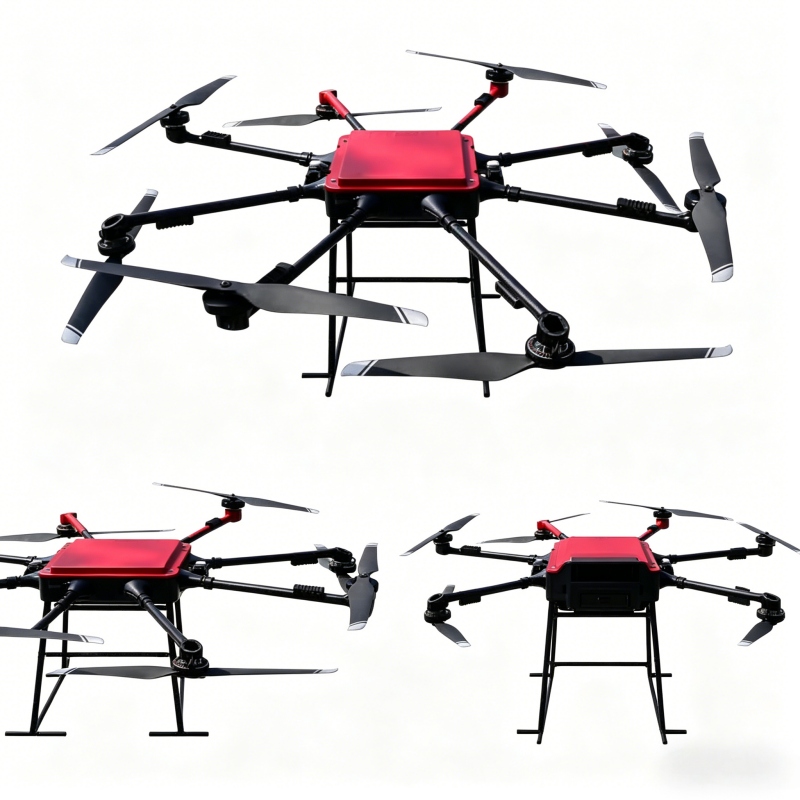

ACD-10030 firefighting and delivery drone – 100kg payload capacity for cargo or 4×20kg firefighting bombs. Tri-optics camera for day/night reconnaissance and target location. Connects to fire trucks or natural water sources. Ideal for building and forest fire fighting.
|
SN |
Item |
Parameter |
|
1 |
Body material |
Carbon fiber |
|
2 |
Symmetrical motor wheelbase |
3300mm |
|
3 |
Size |
Unfolded size: 4400x4400x1200mm |
|
4 |
Empty weight |
60 ± 1kg (without batteries) |
|
5 |
Max takeoff weight |
≥230kg |
|
6 |
Max working load |
100kg |
|
7 |
Full load flight time (100kg) |
≥25min (Altitude =500m, 25 ℃) |
|
8 |
Max level flight speed |
18m/s |
|
9 |
Cruising speed |
15m/s |
|
10 |
Max working altitude |
6000m |
|
11 |
Wind tolerance |
≤14m/s |
|
12 |
GPS hover accuracy |
Horizontal direction: ±0.2m |
|
13 |
Orientation |
RTK dual antenna orientation, no magnetic compass calibration required |
|
14 |
Remote control distance |
20km (depending on the local electromagnetic environment) |
|
15 |
Battery |
14S 35AH*6pcs |
|
16 |
Anti-interference |
1. Standard forward obstacle avoidance |
|
17 |
Delivery support |
1. A,B points dual control delivery mode |
100kg Maximum Payload – Carries 100kg of cargo for delivery missions or four 20kg firefighting bombs for fire suppression.
Dual Mission Capability – Single platform for delivery and firefighting – switch roles as mission demands.
Firefighting Bomb Deployment – Four 20kg bombs per sortie – knock down building and forest fires fast.
Water Spray from Any Source – Connects to fire truck or draws water from lakes, pools, and natural sources for continuous firefighting.
Tri-Optics Reconnaissance Camera – Day and night surveillance with visible, thermal, and low-light sensors.
Precision Target Location – Accurately locates target points for bomb deployment or water spraying.
All-Terrain Operation – Reliable performance in mountains, basins, sandy land, grassland, and desert.
Building & Forest Fire Optimized – Purpose-built for urban structure fires and wildland firefighting missions.
Ideal for:
✔ Building fire fighting (high-rise, warehouse, industrial)
✔ Forest and wildland fire suppression
✔ Emergency cargo delivery to inaccessible areas
✔ Fire surveillance and reconnaissance
✔ Mountain, basin, desert, and grassland operations
✔ Disaster response and humanitarian aid

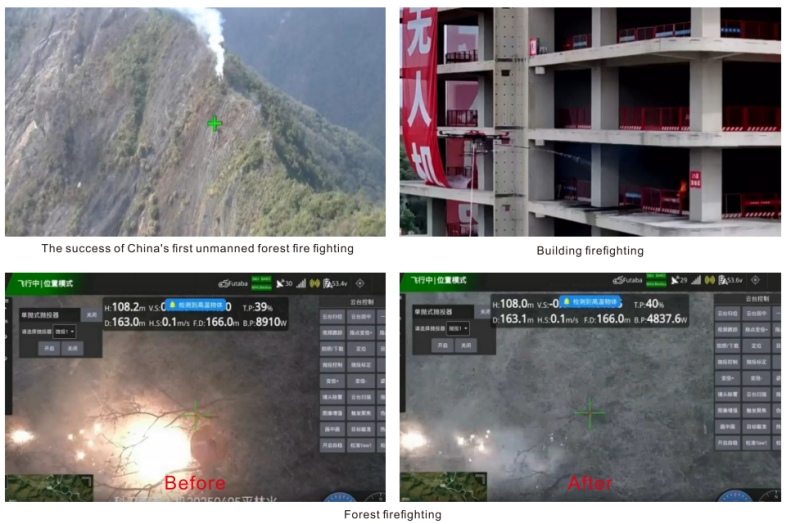

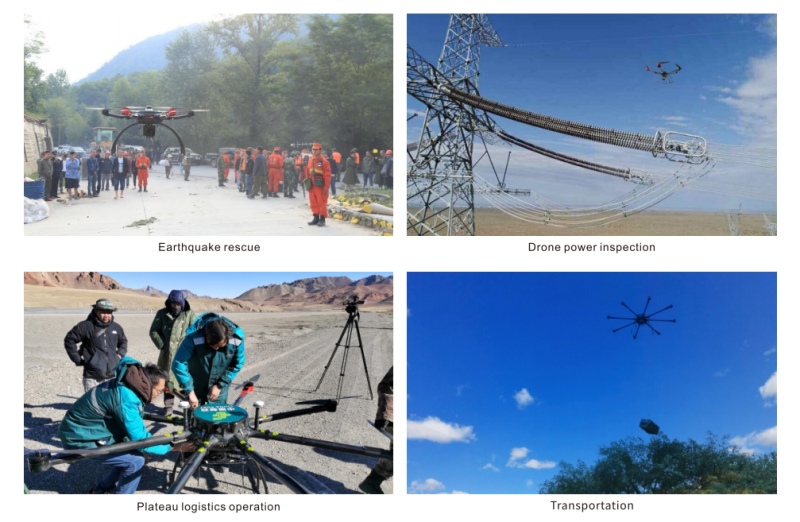

Application case
FAQ
1. What is the maximum payload capacity of the ACD-10030 drone?
The ACD-10030 drone has a maximum payload capacity of 100kg, making it ideal for firefighting, delivery, and other industrial applications.
2. How long can the drone fly on a single charge?
The flight duration depends on the payload weight and environmental conditions. Typically, with standard payloads, the drone can fly for up to 30 minutes. Please refer to the user manual for detailed performance figures under different load conditions.
3. What are the key applications of this drone?
The ACD-10030 is designed for firefighting, cargo delivery, and emergency supply transportation. It is commonly used in scenarios where accessibility is challenging, such as natural disasters, forest fires, and high-rise rescues.
4. Can the drone be used for firefighting in high-rise buildings?
Yes, the ACD-10030 drone is equipped with specialized systems for precision spraying, making it capable of tackling high-rise building fires and delivering fire-retardant materials effectively.
5. What safety features are integrated into the drone?
The drone includes advanced safety features such as:
GPS Navigation for precise control
Obstacle Avoidance Sensors
Automatic Return-to-Home (RTH) in case of low battery or loss of connectivity
Robust structural design to ensure stability during operation
6. What kind of delivery tasks can the ACD-10030 perform?
The drone excels at cargo delivery, medical supply transportation, and emergency goods logistics. It is capable of carrying heavy payloads up to 100kg to inaccessible areas during emergencies.
7. How is firefighting material stored and released during operation?
The drone features a custom payload compartment for storing firefighting materials, which can be precisely released via its automated control system.
8. What is the range of the ACD-10030 drone?
The drone has an operational range of approximately 10 km, depending on conditions such as payload weight and signal strength.
9. Is the drone waterproof?
Yes, the ACD-10030 drone is built with weather-resistant materials, making it suitable for operation in rainy or humid environments.
10. How can I purchase the ACD-10030 drone?
For purchasing or inquiries, visit our website at China Army Supplier or contact our sales team directly for assistance.
11. What training is required to operate the drone?
Basic training is recommended to operate the ACD-10030 drone. Our team provides comprehensive guidance and operational manuals to ensure safe and effective use.
12. Can the drone operate at night?
Yes, the drone is equipped with night-vision capabilities and LED lights, enabling safe operation in low-light conditions.
13. What is the warranty period for the drone?
The ACD-10030 comes with a standard one-year warranty. Extended warranty plans may be available—please contact our sales team for details.
14. Is the drone compatible with additional accessories or systems?
Yes, the drone supports custom integration with additional accessories, such as enhanced cameras, communication systems, and extended battery packs.
15. How do I maintain the ACD-10030 for long-term use?
Regular maintenance includes:
Inspecting the propellers and motors
Cleaning essential components
Charging the batteries promptly
Running diagnostics before each flight
Our technical team is available to assist with maintenance and troubleshooting.
