Payment Terms :
L/C, T/TSupply Ability :
5000 unin/yearPlace of Origin :
CHINABrand Name :
CXXMMOQ :
1Delivery Time :

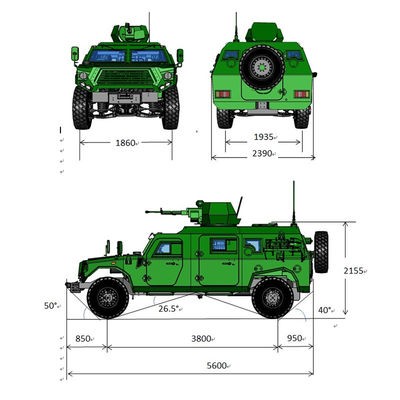

30 day| Project | Type A command vehicle | Type B combat vehicle |
| Dimensional parameters | ||
| Total length | ≤5100mm | ≤5600mm |
| Overall width | ≤2390 mm | ≤2390 mm |
| Overall height | ≤1960 mm | ≤2200 mm |
| Wheelbase | 3300 mm | 3800 mm |
| Mass parameters Maximum total mass (kg) | ≤6500kg | ≤6500kg |
| Performance parameters | ||
| Maximum speed | ≥120 km/h | ≥120 km/h |
| Maximum climbing degree | ≥60% | ≥60% |
| Approach angle | ≥50 | ≥50 |
| Longitudinal passage angle | ≥26.5 | ≥26.5 |
| Maximum driving range | ≥600 km | ≥600 km |
| Terrain passability ability | ||
| Vertical obstacle crossing | 450 mm | 450 mm |
| Horizontal trench | 650mm | 650mm |

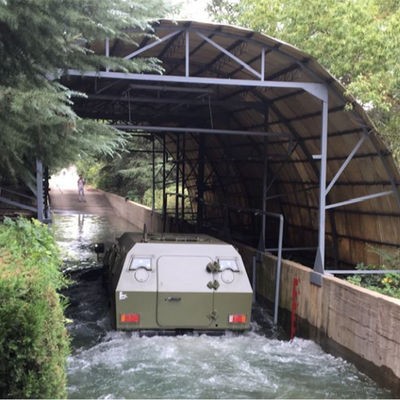

| Wading depth | 800mm | 800mm |
| Environmental adaptability | ||
| Adapt to ambient temperature | -20℃~55℃ | -20℃~55℃ |
| Adaptability to plateau areas | ≥3000m | ≥3000m |
