The CXXM 4WD RHD Diesel Ambulance Vehicle is a compact emergency medical transport platform developed for road and off-road response requirements. Powered by a 2.499 L JE4D25E turbocharged diesel engine and equipped with a mechanical 4WD system, 5-speed manual transmission and a 3,680 kg gross vehicle weight, the ambulance combines mobility with a practical patient-care compartment. Its standard configuration includes a stretcher, scoop stretcher, oxygen system, medical instrument cabinet, patient seating, independent air conditioning, ventilation, lighting and communication equipment. Optional medical devices such as patient monitors, defibrillators, suction units and transport ventilators allow the vehicle to be configured for different emergency response and medical transport programs.
Payment Terms :
L/C, T/TPrice :
1-4 Pieces / US $27,000 | 5-9 Pieces / US $24,000 | 10+ Pieces / US $20,000| 1 | Max.Speed(km/h) | 130 |
| 2 | Fuel customer (L/100km) | 9.3 |
| 3 | Min.turning radius (m) | 6.4 |
| 4 | Angle of Approach/Departure(°) | 42/33;42/29 |
| 5 | Max. Slop(%) | ≥60 |
| 1 | L/W/H(mm) | 5230/1960/2130 |
| 2 | Wheel base(mm) | 3035 |
| 3 | Tread(F/R)(mm) | 1540/1540 |
| 4 | Min ground clearance(mm) | 225 |
| 5 | Passenger( person) | 2 in driver's cab |
| 6 | Curb weight(kg) | 2000 |
| 7 | Gross Weight (kg) | 3680 |
| 8 | Fuel tank capicity (L) | 75 |
| 1 | Engine model | JE4D25E |
2 |
Engine type |
Four cylinder in line,Turbo charge,water cooling,HPCR |
| 3 | Rated. power(kw/rpm) | 100/3800 |
| 4 | max. Torque(N.m/rpm) | 340/(2000) |
| 5 | Displacement(L) | 2.499 |
| 6 | Fuel | diesel |
| 7 | Emission | Euro 5 |
| 8 | Working type | Direct-injection |
| 9 | Cylinder(unit) | 4 |
| 10 | Valves(unit)/Cylinder | 4 |
| 1 | front brake system | DSIC |
| 2 | rear brake system | DISC |
| 3 | Park brake system | MANUAL |
| 4 | F/R wheel rim | 16×7JJ |
| 5 | F/R tire | LT265/75R16 |
| 6 | spare tire | LT265/75R16 |
1 |
Front suspension |
Front Coil Spring independent Suspension with stabilizer bar |
2 |
Rear suspension |
non- Independent suspension with Leaf spring; |
| 3 | Assistant steering | Hydraulic assistant |
| 4 | Drive type | 4 wheel drive |
| 5 | Transfee case type | Mechanical BorgWarner |
| 6 | Gearbox type | 5 MT TONGLI |
| 7 | Rear axle ratio | 4.875 |
Medical Devices (Optional)
1) Comprehensive First-aid kit
2) Patient monitor
3) Defibrillator monitor
4) Suction unit
5) mergency and Transport ventilator
6) Video laryngoscope
7) Spine board
8) Head immobilizer
9) Cervical collar
The CXXM 4WD ambulance can be configured for a variety of emergency medical transportation and field-response requirements.
Potential applications include:
The 4WD configuration is particularly useful for organizations that require an ambulance capable of reaching areas where conventional two-wheel-drive medical vehicles may have limited mobility.

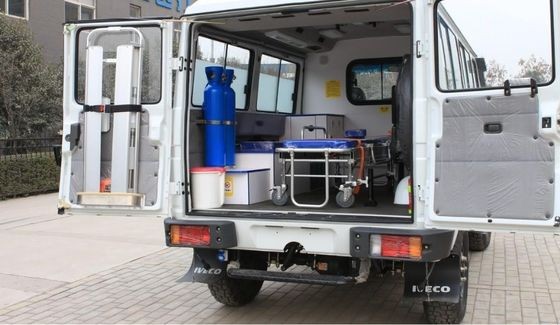

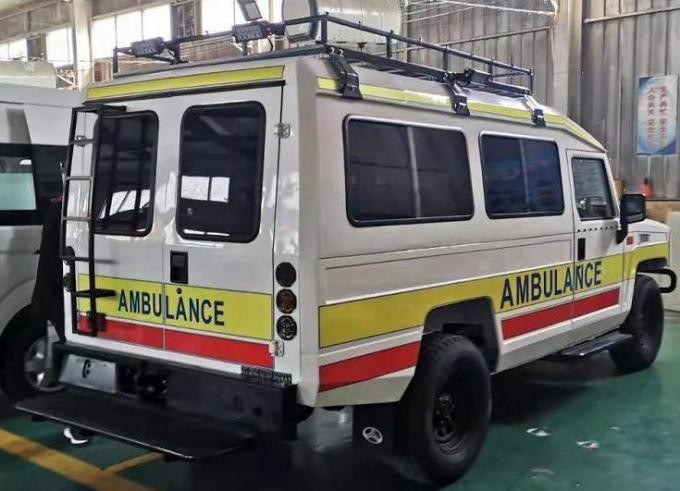

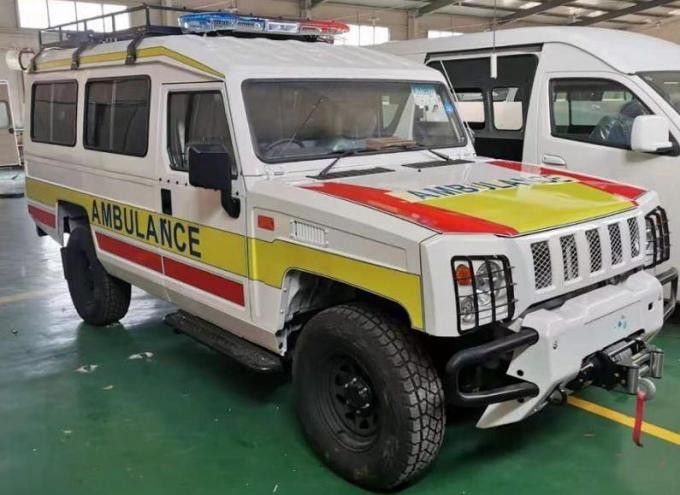

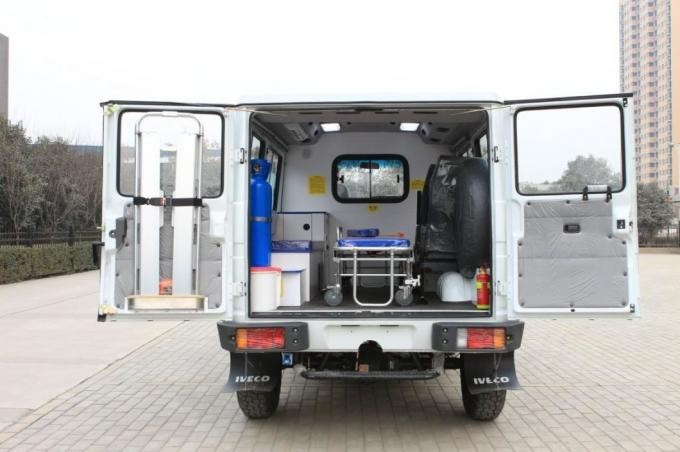

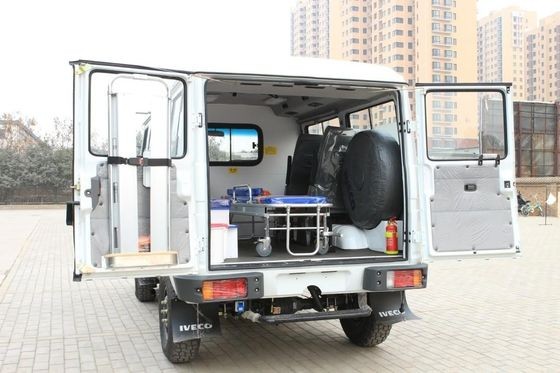

Reference Pictures of Ambulance
(Pictures for your reference only, all details are subject to confirmed technical specs and final design)
