10kg payload surveillance drone 85 minute flight time folding quadcopter

disaster detection and search rescue drone with autonomous route planning

intelligent flight control with auto return home and loss of control protection

all-weather surveillance drone operating in rain and high altitude conditions

quick plug-and-play folding drone for portable transport and rapid deployment

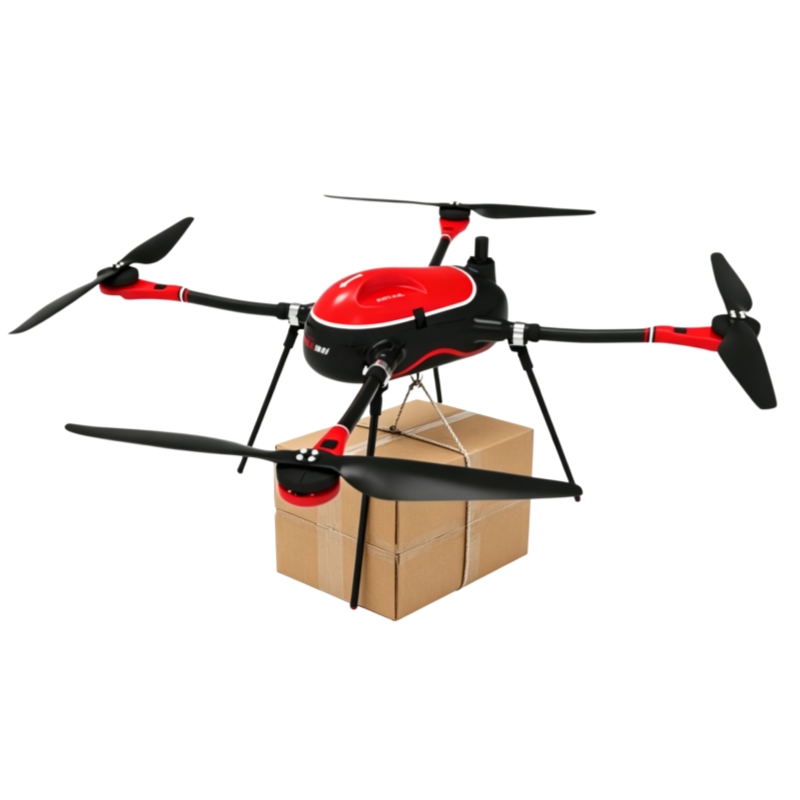

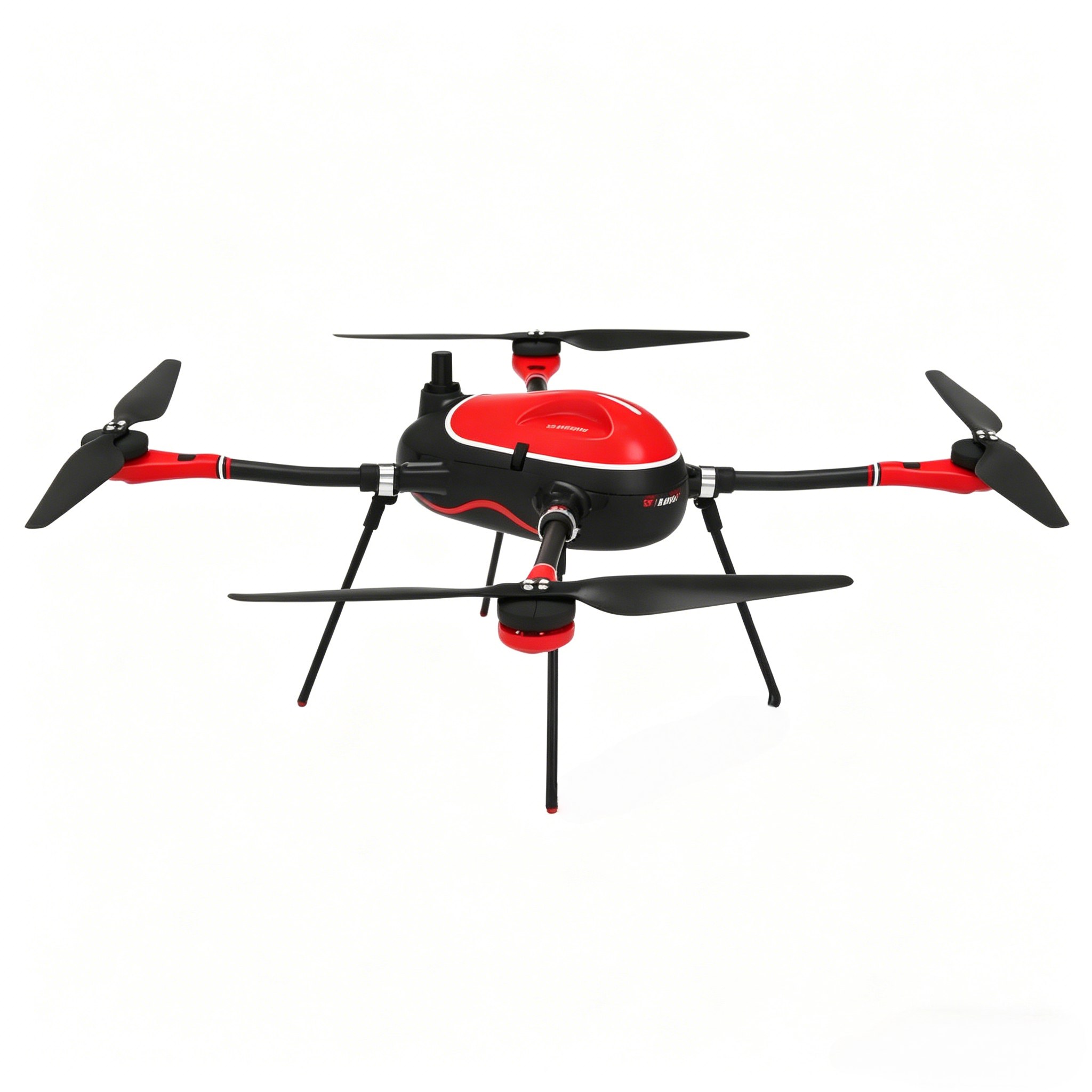

10kg Payload Surveillance Drone

10kg payload surveillance drone with 85min flight time, quick plug-and-play folding structure, intelligent flight control with auto-return, low-voltage alarm, loss-of-control protection. Ideal for disaster detection, border patrol, search & rescue, power line inspection, and forest fire prevention.

Inquiry now

product introduction

Size	Unfold size	L1625×W985×H505±10mm
	Symmetrical motor wheelbase	1265±10mm
	Propeller	732±5mm
	Maximum wingspan	1997±10mm
	Fuselage height	515±10mm
	Package	L915×W500×H445±10mm
Weight	Arms	2300±20g
	Center plate	1800±20g
	N.W excluding battery	4100±20g
	Aluminum box + packing material	17.5±0.1Kg
	Battery	3850±50g
	Standard task payload	≤5Kg
	Single mount point load bearing	≤4kg
	Max task payload *	≤10kg (Balanced mounting)
	Max take-off weight	18Kg

85 Minutes Maximum Flight Time – Extended endurance for long-duration surveillance and inspection missions.
10kg Payload Capacity – Carries various mission payloads including cameras, sensors, and specialized equipment.
Quick Plug-and-Play Structure – Easy folding and portability for rapid deployment in the field.
All-Weather Operation – Excellent wind resistance and rain-resistant design for harsh environments.
High-Altitude Capable – Reliable performance in elevated terrain and mountain operations.
Intelligent Flight Control System – Low-voltage alarm, loss-of-control protection, and automatic return-to-home.
Precision Manual Control – Fine-tuned handling for operator-directed missions.
Autonomous Flight Route Planning – Pre-programmed missions for consistent, repeatable operations.
Efficient Power System – Optimized energy management for maximum endurance.
Intelligent Control Battery – Smart battery management for safety and reliability.Ideal for:
✔ Disaster detection and damage assessment
✔ Technical investigation and crime scene documentation
✔ Border patrol and coastal surveillance
✔ Search and rescue operations
✔ Road monitoring and traffic management
✔ Geographic surveying and mapping
✔ Power line and infrastructure inspection
✔ Forest fire prevention and early detection
✔ Earthquake relief and humanitarian response
